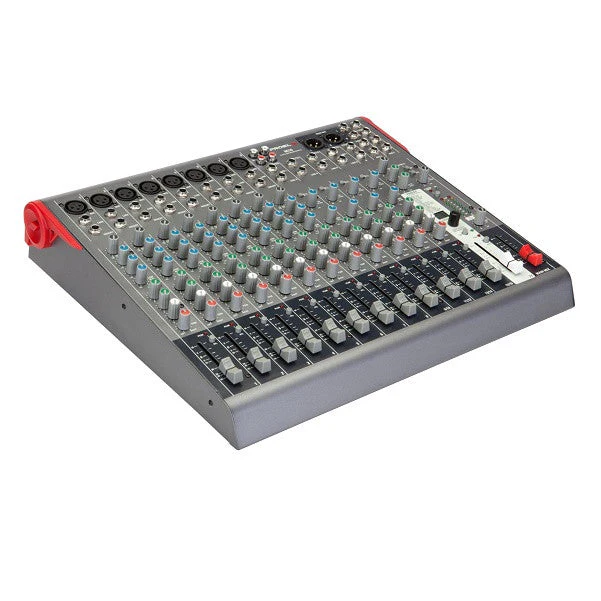

The Story
The Mi Series has been created by PROEL in order to offer very compact mixers with a high input density and a superior audio quality at a very affordable price.
The series includes 5 models with 5, 6, 10, 12 and 16 channels, featuring in a very compact package a high number of inputs and a full set of intelligent functions, able to satisfy most of the sound reinforcement applications.
Designed and engineered in Italy by PROEL R&D, Mi mixers are hosted in an ultra-rugged stylish metal case, providing extended durability for a stage-proof use.
The Mi16 features 8 MIC/LINE plus 4 STEREO LINE channels that, together with 2 monitor sends and the 256 studio-grade effects provided by the 24bit PROFEX DSP, allows this compact console to be used for mixing a full live band with a clean and accurate sound.
Specifications:
- System type: Compact 16-channel 2-bus mixer
- Input Connectors:
Mic Input: Balanced XLR-F
Line Input: Balanced JACK - Input Sensitivity:
MONO INPUT CHANNEL - Mic Input: from -10 to -50 dB
MONO INPUT CHANNEL - Line Input: from +20 to -40 dB
STEREO INPUT CHANNEL - Line Input: +4 / -10 dB - Input Impedance:
MONO INPUT CHANNEL - Mic Input: 2 Kohm
MONO INPUT CHANNEL - Line Input:10 Kohm
STEREO INPUT CHANNEL - Line Input: 10 Kohm - Output Connectors: Balanced XLR-M + JACK
- Output Levels: Maximum level all outputs: +22 dBu
- Headphones output impedance: 32 ohm
- Mono Input channel equalization:
HIGH (shelving): ±15 dB @ 12KHz
MID (peaking): ±15 dB @ 2.5KHz
LOW (shelving): ±15 dB @ 80Hz - Stereo Input channel equalization:
HIGH (shelving): ±15 dB @ 12KHz
LOW (shelving): ±15 dB @ 80Hz - Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS
- Crosstalk (meas. at 1 KHz): > 82 dBu
- HUM & Noise unweighted: < -93 dBu
- THD + Noise at +4dB, 1kHz: < 0,008 %
- Power Supply: 110-240 VAC (±10%) 50 / 60 Hz
- Power consumption: 20 W
- Weight: 3.80kg
- Dimensions (W x H x D): 420x368x78 mm
Made in China
