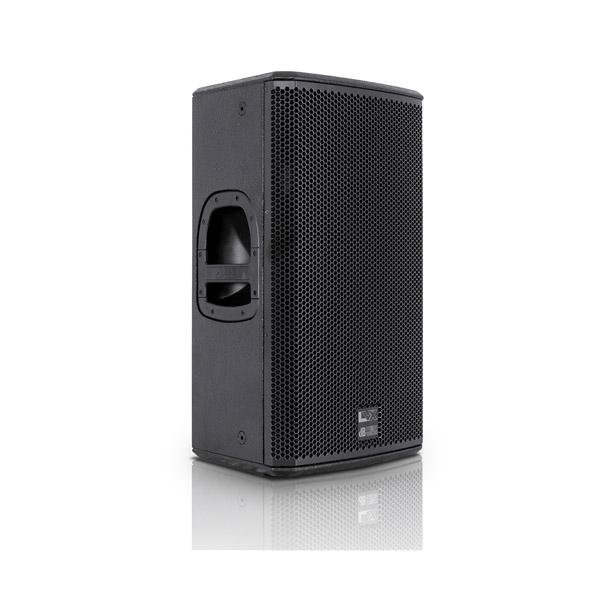

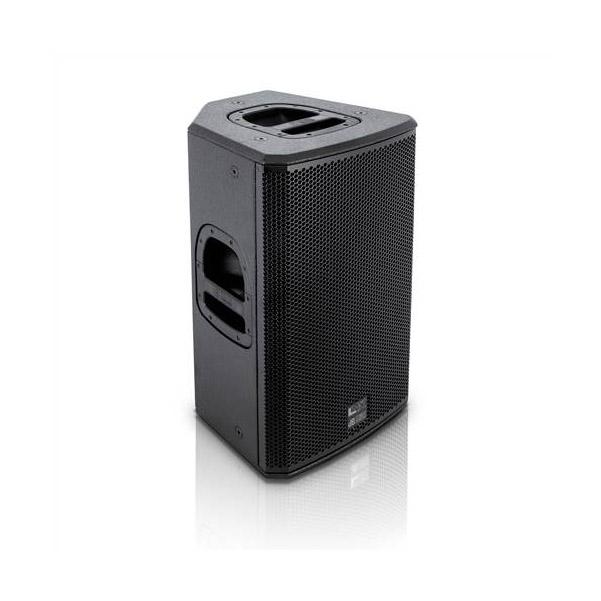

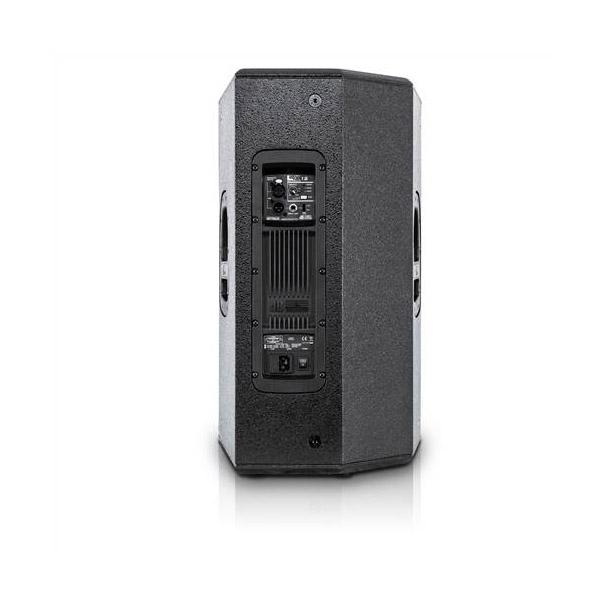

DB Technologies LVX 12 2-Way Active Speaker

Overview:

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

Specifications:

Technical Data
Speaker Type 2-Way Active Speaker

Acoustical Data
Frequency Response [-10dB] : 55 - 20.000 Hz
Frequency Response [-6dB] : 62 - 19.000 Hz
Max SPL : 127 dB
HF : 1"
Directivity : 90 x 40°
Horn : Rotatable CD Horn
LF : 12"

Amplifier
Amp Technology : Digipro G2
Amp Class : Class-D
Peak Power : 1600 W
PRG Power : 800 W

Processor
Controller : DSP 24bit/48kHz
System Presets : Flat, Processed
Limiter : Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF : 1800 Hz
Slope LF-HF : 24 dB/Octave

Mechanics
Housing : Multiplex
Angles Up : Monitor use 45°
Handles : 3 (1x top side, 1x side)
Rigging points : 12 x M10
Pole Mount : D36 mm
Width : 360 mm (14.17 in)
Height : 610 mm (24 in)
Depth : 360 mm (14.17 in)
Weight : 17 kg (37.5 lbs)
